Nominal |
Outside Diameter |

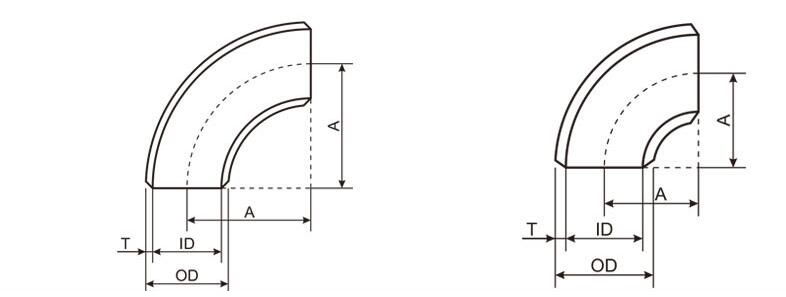

Center to End |
|||
|
Long Radius Elbows |
Short Radius Elbows |
||||
|
90 degree |
45 degree |
90 degree |
45 degree |
||
|
1/2 |
21.3 |
38.1 |
15.7 |
-- |
-- |
|
3/4 |
26.7 |
38.1 |
19.1 |
-- |
-- |
|
1 |
33.4 |
38.1 |
22.4 |
25.4 |
-- |
|
1-1/4 |
42.2 |
47.8 |
25.4 |
31.8 |
-- |
|
1-1/2 |
48.3 |
57.2 |
28.4 |
38.1 |
-- |
|
2 |
60.3 |
76.2 |
35.1 |
50.8 |
-- |
|
2-1/2 |
73.0 |
95.2 |
44.4 |
63.5 |
-- |
|
3 |
88.9 |
114.3 |
50.8 |
76.2 |
31.6 |
|
3-1/2 |
101.6 |
133.4 |
57.2 |
88.9 |
36.8 |
|
4 |
114.3 |
152.4 |
63.5 |
101.6 |
42.1 |
|
5 |
141.3 |
190.5 |
79.2 |
127.0 |
52.6 |
|
6 |
168.3 |
228.6 |
95.2 |
152.4 |
63.4 |
|
8 |
219.1 |
304.8 |
127.0 |
203.2 |
84.2 |
|
10 |
273.1 |
381.0 |
158.8 |
254.0 |
105.2 |
|
12 |
323.9 |
457.2 |
190.5 |
304.8 |
126.3 |
|
14 |
355.6 |
533.4 |
222.2 |
355.6 |
147.3 |
|
16 |
406.4 |
609.6 |
254.0 |
406.4 |
168.3 |
|
18 |
457.2 |
685.8 |
285.8 |
457.2 |
189.4 |
|
20 |
508.0 |
762.0 |
317.5 |
508.0 |
210.4 |
|
22 |
558.8 |
838.2 |
342.9 |
558.8 |
231.5 |
|
24 |
609.6 |
914.4 |
381.0 |
609.6 |
252.5 |
|
26 |
660.4 |
990.6 |
406.4 |
660.4 |
273.5 |
|
28 |
711.2 |
1066.8 |
438.2 |
711.2 |
|
Stainless steel elbow is a pipe fitting used to connect two pipes and change the flow direction of the pipes. In the pipeline system, stainless steel elbow plays a very important role.
Hebei Shengtian Pipe-Fitting Group Co., Ltd. also produces various stainless steel elbows, such as ASTM A403 WP 304 Stainless Steel Elbow, ASTM A403 WP 304L Stainless Steel Elbow, ASTM A403 WP 304H Stainless Steel Elbow, ASTM A403 WP 316 Stainless Steel Elbow, ASTM A403 WP 316L Stainless Steel Elbow, ASTM A403 WP 316H Stainless Steel Elbow etc.
