Schedule 10 Long Radius 90 Degree Butt Weld Pipe Fittings are available in A312 compliant dual certified 304/304L or 316/316L Stainless Steel with a mill finished inner and outer diameter (ID/OD). These stainless weld fittings conform to ASTM A403, ASTM A960, MSS SP-4, ASTM B16.9 (except wall), and MSS SP-43. Schedule 10 fittings are Nominal Pipe Size (NPS), not Tube Outside Diameter (OD). The walls of Schedule 10 pipe and fittings are almost twice as thick as standard 16 gauge Tube OD fittings, making them ideal for custom turbo manifolds and downpipe fabrication. The increased wall thickness provides added durability and is less prone to cracking under the high thermal stress from exhaust gas temperatures.
Additional buttweld pipe fittings are available in long radius 45's, short and long radius 90's, tee's and straight lengths for making anything from log style manifolds to equal length twin scroll manifolds. Great for use in conjunction 1/2" Thick Mild Steel Manifold Flanges which are optimized for Sch. 10 fittings.
| Standards | ASME/ANSI B16.9, ASME/ANSI B16.11, ASME/ANSI B16.28,JIS B2311, JIS B2312, DIN 2605, DIN 2615, DIN 2616, DIN 2617, BS 4504, GOST 17375, GOST 30753, GOST 17378 |
| Bending radius | Short Radius(SR), Long Radius(LR), 2D, 3D, 5D, multiple |
| Degree | 45 / 90 / 180, or customized degree |
| Size Range | Seamless type: ½" up to 28" |
| Welded type: 28"-to 72" | |
| WT Schedule | SCH STD,SCH10 to SCH160, XS, XXS, |
| Carbon Steel | A234 WPB, WPC; A106B, ASTM A420 WPL9, WPL3, WPL6, WPHY-42WPHY-46, WPHY-52, WPHY-60, WPHY-65, WPHY-70, |
| Alloy Steel | A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91 |
| Special Alloy Steel | Inconel 600, Inconel 625, Inconel 718, Inconel X750, Incoloy 800, |
| Incoloy 800H, Incoloy 825, Hastelloy C276, Monel 400, Monel K500 | |
| WPS 31254 S32750, UNS S32760 | |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254 |
| Duplex stainless steel | ASTM A 815 UNS S31803, UNS S32750, UNS S32760 |
| Applications | Petroleum industry, chemical, power plant, gas piping, shipbuilding. construction, sewage disposal,and nuclear power etc. |
| Packaging material | plywood cases or pallets, or as per customer's requirements |

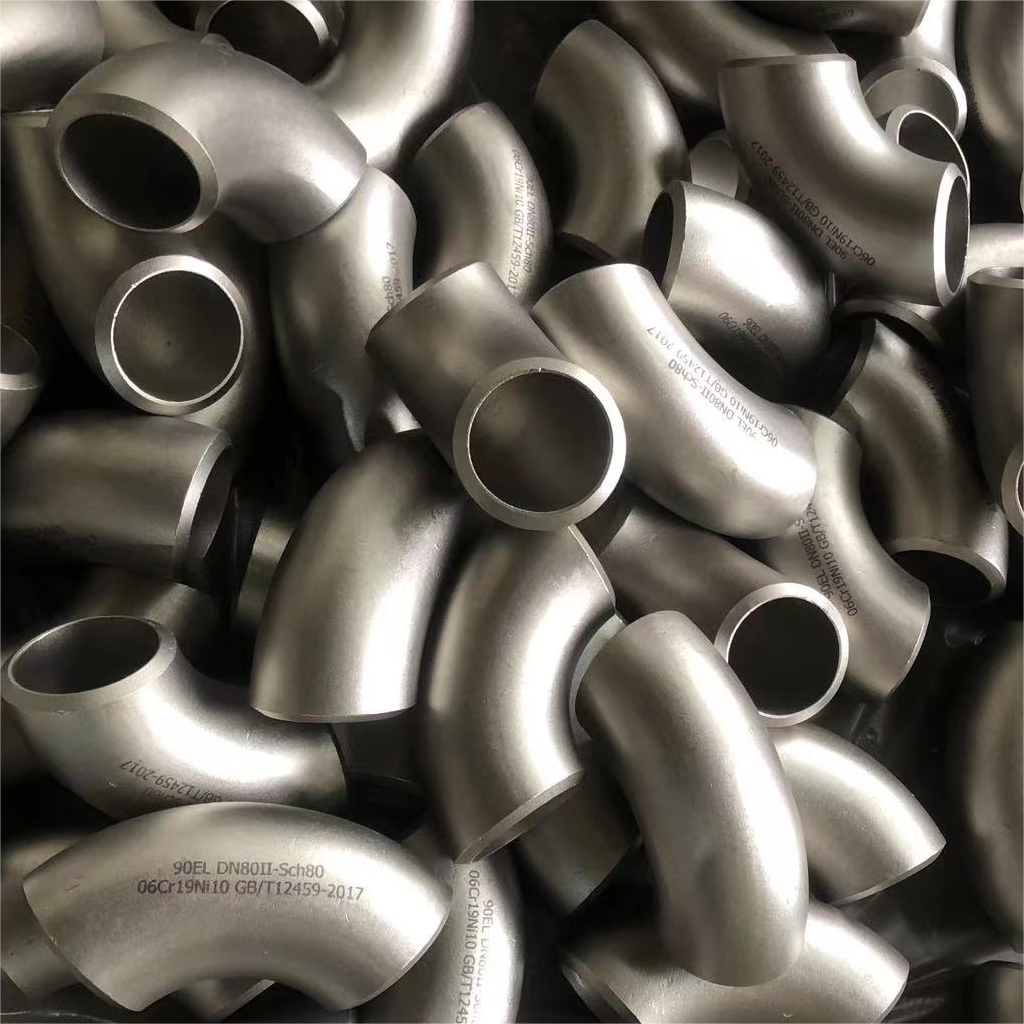

●Fitting Stainless Steel Elbow Size:1/2"-36" seamless, 26"-110" welded
●Fitting Stainless Steel Elbow Standard:ANSI B16.9, EN10253-4, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, non-standard,etc.
●Fitting Stainless Steel Elbow Wall Thickness:SCH5S, SCH10, SCH10S, STD, XS, SCH40S, SCH80S, SCH20, SCH30,SCH40,SCH60, SCH80, SCH160, XXS, customized and etc.
●Fitting Stainless Steel Elbow Type:30° 45° 60° 90° 180°,customized, etc
●Fitting Stainless Steel Elbow Radius:LR/long radius/R=1.5D,SR/Short radius/R=1D or customized
●Fitting Stainless Steel Elbow Surface:Pickled, sand rolling, polished, mirror polishing and etc.
●Fitting Stainless Steel Elbow Material:Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S, A403 WP347H, A403 WP316Ti, A403 WP317, 904L,1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc.
●Fitting Stainless Steel Elbow Application:Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust;power plant;ship building;water treatment, etc.
Shengtian Group is one of the industry leading manufacturers, traders, suppliers and exporters of Schedule 10 Long Radius 316L Stainless Steel 90 Degree Elbow. Stainless steel A403 WP304 contains higher chromium and lower carbon content. Lower carbon means less chromium carbide precipitation due to welding. The carbon content of this steel is as low as 0.03%, thus reducing its susceptibility to intergranular corrosion.
We can produce pipe fitting stainless steel elbows of different sizes and standards, and can also provide customized services according to your pipe fitting stainless steel elbow drawings.
