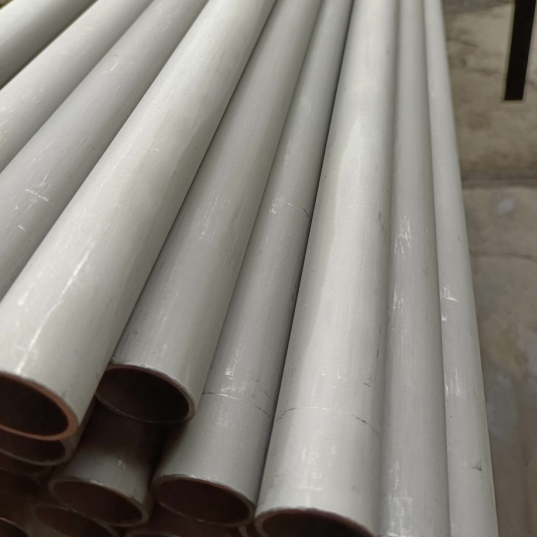

Seamless steel tubes for pressure purposes
EN 10216 tubing Chemical composition:
| Steel grade | C | Si | Mn | P | S | Cr b | Mo b | Ni b | Al tot |
Cu b c |
Nb b | Cr+Cu+Mo+Ni | |
| Steel name | Steel number | max. | max. | max. | Max. | max. | max. | max. | max. | min. | max. | max. | max. b |
| P195TR1 | 1.0107 | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | - | 0,30 | 0,010 | 0,70 |
| P195TR2 | 1.0108 | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | 0,02 d | 0,30 | 0,010 | 0,70 |
| P235TR1 | 1.0254 | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | - | 0,30 | 0,010 | 0,70 |
| P235TR2 | 1.0255 | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | 0,02 d | 0,30 | 0,010 | 0,70 |
| P265TR1 | 1.0258 | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | - | 0,30 | 0,010 | 0,70 |
| P265TR2 | 1.0259 | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | 0,02 d | 0,30 | 0,010 | 0,70 |
| a Elements not included in this Table shall not be intentionally added to the steel without the agreement of the purchaser, except for elements which may be added for finishing the cast. All appropriate measures shall be taken to prevent the addition of undesirable elements from scrap or other materials used in the steelmaking process. | |||||||||||||
| b The content of these elements need not be reported unless intentionally added to the cast. | |||||||||||||
| c Option 2: In order to facilitate subsequent forming operation, an agreed maximum copper content lower than indicated and an agreed specified maximum tin content shall apply. | |||||||||||||
| d This requirement is not applicable provided the steel contains a sufficient amount of other nitrogen binding elements which shall be reported. |
| Product Name | Executive Standard | Dimension | Steel Code / Steel Grade |
| Seamless Austenitic Stainless Steel Pipes | ASTM A312/A312M, ASME SA312/SA312M | OD: 1/4"~20" | TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H |
| WT: SCH5S~SCH80S | |||
| Seamless Austenitic Stainless Steel Tubing for General Service | ASTM A269, ASME SA269 | OD: 6.0~50.8mm | TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H |
| Seamless Austenitic Alloy-Steel Boiler, Super Heater and Heat-Exchanger Tubes | ASTM A213/A213M, ASME SA213/SA213M | OD: 6.0~50.8mm | TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H |
| WT: 0.8~10.0mm | |||
| Seamless Duplex Stainless Steel Tubing for General Service | ASTM A789 / A789M | OD: 19.0~60.5mm | S31803, S32205, S32750 |
| WT: 1.2~5.0mm | |||
| Seamless Duplex Stainless Steel Pipes | ASTM A790 / A790M | OD: 3/4"~10" | S31803, S32205, S32750 |
| WT: SCH5S~SCH80S | |||
| Seamless Stainless Steel Mechanical Tubing | ASTM A511 | OD: 6.0~50.8mm | MT304, MT304L, MT304H, MT310, MT310S, MT316, MT316L, MT317, MT317L, MT321, MT321H, MT347 |
| WT: 1.8~10.0mm | |||
| Seamless Stainless Steel Tubes for Pressure Purposes | EN 10216, DIN 17456, 17458 | OD: 6.0~530.0mm | 1.4301, 1.4307, 1.4541, 1.4401, 1.4404, 1.4571, 1.4878, 1.4432, 1.4462 |
