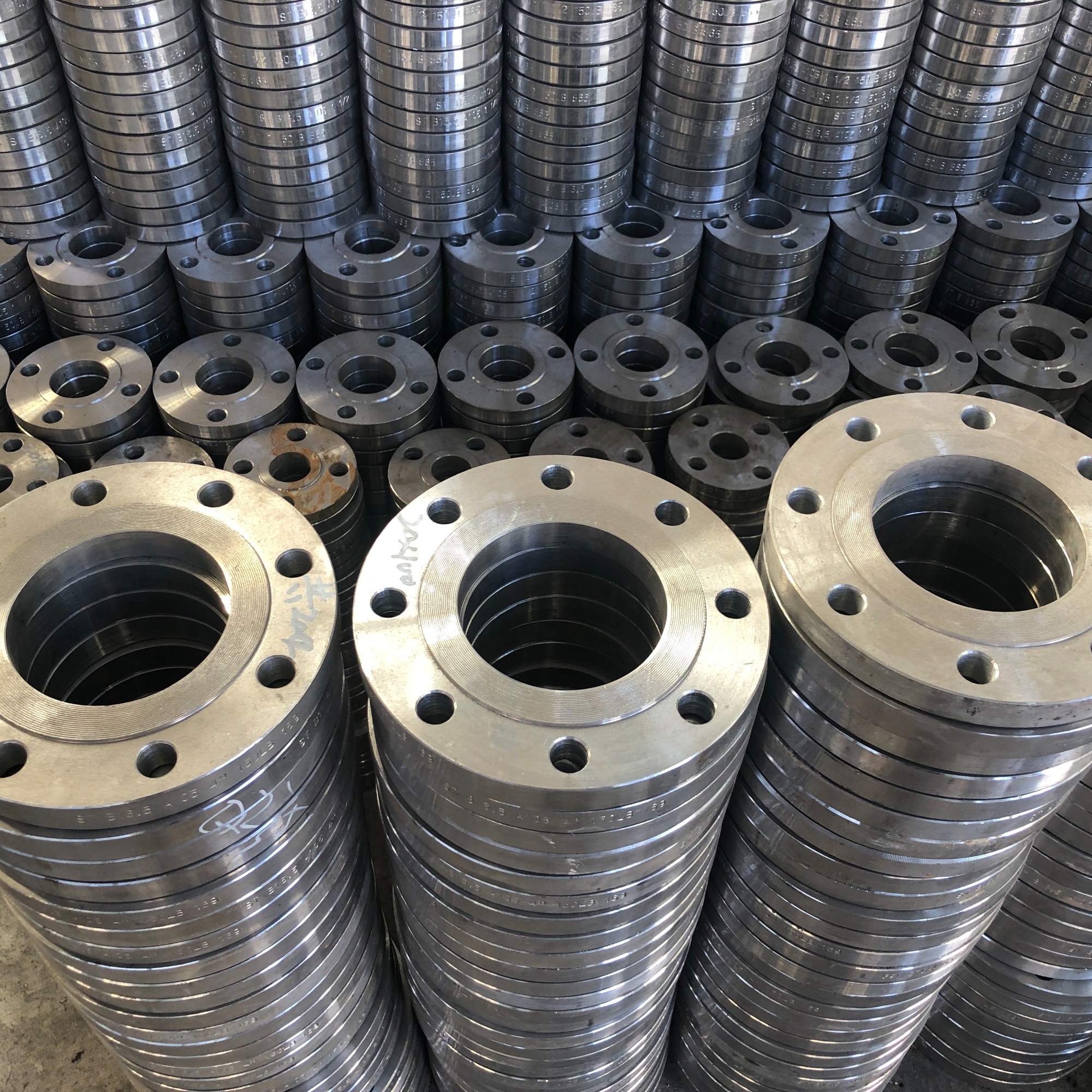

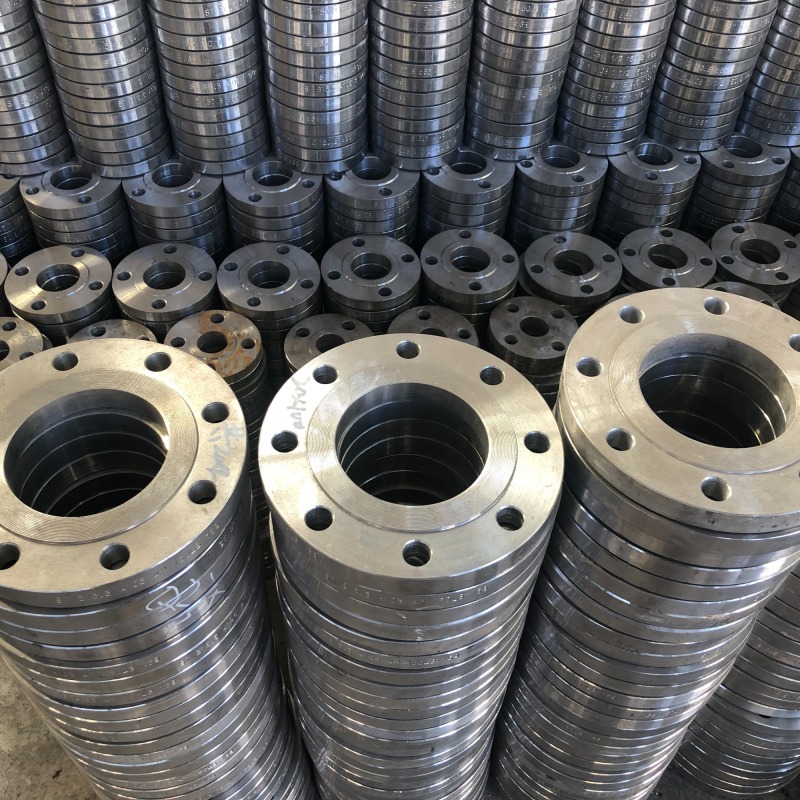

| Product Name | DIN Forged Stainless Steel 316l Weld Neck Flanges Fitting Pipe Flange | |
| Items | Plate, Welding Neck, Slip on, Blind, Socket Welding, Lap joint, Threaded Flange etc. | |
| Standard | ANSI | ANSI B16.5, ASME B16.47 series A/B |
| DIN | Germany 6bar, 10bar, 16bar, 25bar, 40bar | |
| GOST | GOST 12820/12821/12836 | |
| EN1092-1 | EN1092-01/05/11/12/13 | |
| JIS | JIS B 2220-1984, KS B1503, JIS B 2216 | |
| BS4504 | BS4504 BS10 Table D/E | |
| Material | ANSI | CS A105, S235, Steel 20; SS 304/304L, 316/316L |
| DIN | CS RST37.2, S235JRG, P245GH, P250GH; SS 304/304L, 316/316L | |
| GOST | CS Steel 20, 16MN, Q235 | |
| EN1092-1 | CS RST37.2, S235JRG, C22.8 | |
| JIS | SS400, SS 304/304L, 316/316L | |
| BS4504 | CS RST37.2, S235JRG, C22.8; SS 304/304L, 316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500, 2500lbs |
| DIN | PN6, PN10, PN16, PN25, PN40 | |
| GOST | PN6, PN10, PN16, PN25, PN40, PN63, PN100 | |
| EN1092-1 | PN6, PN10, PN16, PN25, PN40, PN63, PN100 | |
| JIS | 5K, 10K, 16K, 20K, 30K, 40K | |
| BS4504 | PN6, PN10, PN16, PN25, PN40 | |
| Size | ANSI | 1/2" - 80" |
| DIN | DN15-DN2000 | |
| GOST | DN15-DN1600 | |
| EN1092-1 | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS4504 | DN15-DN2000 | |
| Chemical Composition(%) | |||||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu | |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | - | 0.08 | 1.5 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 | 4.0~6.0 | - | ≤0.25 | ||
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | - | |||
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | - | |||
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - | |||
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - | |||
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | - | |||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | |||
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 | |||
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - | |||
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 |
|
- | |||
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 | |||
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 | |||
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 | 1.0~2.0 | ||
|
INCONEL 028 |
≤0.03 | ≤1.00 | ≤2.50 | ≤0.030 | ≤0.030 | ≤28.0 | ≤34.0 | ≤4.0 | ≤1.4 | ||
|
MONEL 400 |
≤0.30 | ≤0.5 | ≤2.00 | - | ≤0.024 | - | ≥63.0 | - | ≤34.0 | ||
|
INCONEL 800 |
≤0.10 | ≤1.00 | ≤1.50 | - | ≤0.015 | ≤23.0 | ≤35 | 4.0~5.0 | - | ≤0.75 |
Ti≤0.6 Al≤0.6 |
316L Stainless Steel Flanges manufacturers, ASTM A182 Stainless Steel 316L Flanges Suppliers, SS 316L flanges, SS 316L SO flanges, SS 316L weld neck flanges, SS 316L blind flanges & SS 316L flat face flanges
