Stainless concentric reducers are a kind of pipe fitting that joins two pipes of different diameter. The stainless pipe reducers are available in a range of materials depending on the end use of the products and these fittings are manufactured in inch and metric size.
Concentric Reducers are used to join pipe or tube sections on the same axis. They provide an in-line conical transition between pressurized pipes of differing diameters. A pipe reducer can be a single diameter change or a multiple diameter change. The pipes cannot recognize what the outside configuration of the pipe reducer looks like.
The pipe flow is affected by the inside diameter conical transition configuration which can be axially moved and externally reconfigured to provide for more economical reducer fittings. Thus, concentric reducers connect pipes of unequal size but have a common centerline. In other words, it is a type of pipe fitting with different size ends to join pipes of different diameter that joins pipe sections on the same axis.

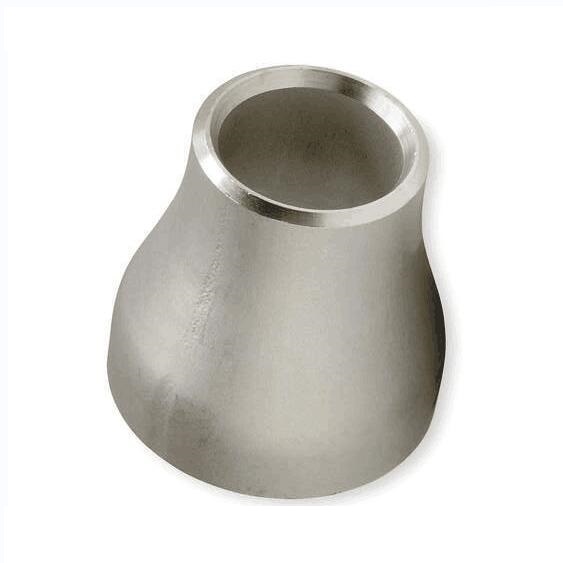

| ASME B16.9 ASTM A403 WP 316L Stainless Steel Seamless Con Reducer | |
| Type | concentric reducer(con reducer) , eccentric reducer(ecc reducer), seamless reducer , butt welding reducer,carbon steel reducer(CS reducer), mild steel reducer(MS reducer), alloy steel reducer(AS reducer), stainless steel reducer(SS reducer)… |
| Size | 1/2"-48"(DN15-DN1200) |
| Varieties | SCH5,SCH10,SCH20,SCH30,STD,SGP, SCH40, SCH60, XS, SCH80, XXS,SCH100,SCH120,SCH140,SCH160 |
| Standred | ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/ DIN2615 /GB-12459/GB-T13401,Gost17378 |
| Material | Carbon steel: ASTM A234 GR WPB , ST37.2 , ST35.8... |
| Alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80... |
|
| Stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/TP310….. |
|
| Surface treatment | Carbon steel:Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing |
| Alloy steel:Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing |
|
| Stainless steel: pickled,Polish | |
| Application Fields | Chemical Industry /Petroleum Industry /Power Industry/Metallurgical Industry Building Industry /Ship-building Industry |
| Packing | plywood cases, pallets, nylon bags or according to the customers' requirements |
Packaging & Shipping
1. Plywood case packing if necessery.
2. Packed by plastic bags if for very big machines.
3. Usually, sea shipping.
About us:
Hebei Shengtian Pipefitting Group Co.,Ltd is specialized in producing stainless steel pipe，stainless steel pipe fittings,stainless steel flanges,stainless steel elbows,stainless steel tees,cross, reducer (concentric and eccentric reducers),stub ends and caps. Products variety,sizes diverse,beautiful appearance,stable performance,not only have variety materials (201,301,304,304L,316,316L,321,310S）welding and seamless elbows,also can produce according to the standard of GB12459,ASTM 403,DIN 2605(elbow),DIN 2609(Stub End),DIN 2615 (TEE),DIN2616 (Reducers) standard pipe fittings,stainless steel pipe fittings include A & B series,long radius and short radius,and we can produce the special products according to clients request.
Our company produced stainless pipe fittings,stainless steel flanges etc products is wildly applied in chemical, petroleum, electric power,paper making,food,pharmaceutical,construction and other industries.Expand the market,establish a wide range of sales network,we sincerely welcome new and old customers to visit the factory,send the letter to negotiate business.
ASME B16.9 ASTM A403 WP 316L Stainless Steel Seamless Con Reducers are designed with the small and large diameters on opposite ends and joined by a cone shaped transition section. They are available in both seamless and welded construction.
