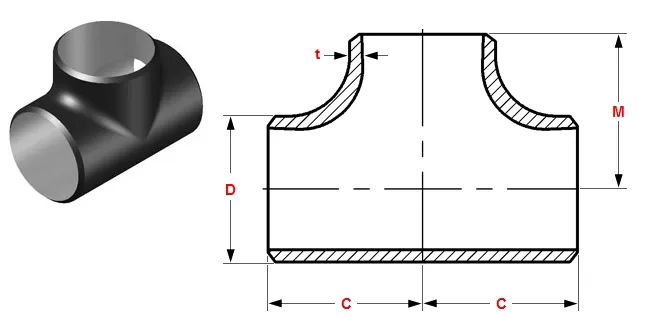

| NPS | O.D. D |
Center to End C |
Center to End M |
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1.1/4 | 42.2 | 48 | 48 |
| 1.1/2 | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2.1/2 | 73 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 3.1/2 | 101.6 | 95 | 95 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273 | 216 | 216 |
| 12 | 323.8 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
| 16 | 406.4 | 305 | 305 |
| 18 | 457 | 343 | 343 |
| 20 | 508 | 381 | 381 |
| 22 | 559 | 419 | 419 |
| 24 | 610 | 432 | 432 |
| 26 | 660 | 495 | 495 |
| 28 | 711 | 521 | 521 |
| 30 | 762 | 559 | 559 |
| 32 | 813 | 597 | 597 |
| 34 | 864 | 635 | 635 |
| 36 | 914 | 673 | 673 |
| 38 | 965 | 711 | 711 |
| 40 | 1016 | 749 | 749 |
| 42 | 1067 | 762 | 711 |
| 44 | 1118 | 813 | 762 |
| 46 | 1168 | 851 | 800 |
| 48 | 1219 | 889 | 838 |

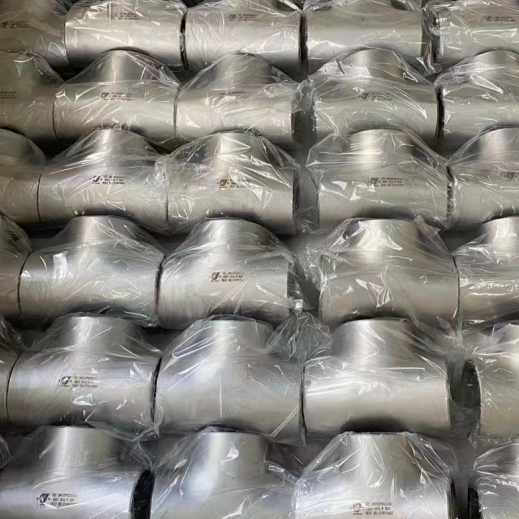

ASTM A403 WP316L Stainless Steel Pipe Fitting Equal Tee
| Porduct Name | Pipe Fitting Tee |
| Size | 1/2"-60" seamless,26"-110"welded |
| Standard | ANSI B16.9,MSS SP 43, DIN2615, EN10253-4, GOST17376, JIS B2313, MSS SP 75, etc. |
| Wall thickness |
SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Type | Equal/Straight tee,reduced tee,Y tee,lateral tee,Barred tee,split tee,tee cross |
| End | bevel end/BE/buttweld |
| Surface | pickled,sand blast, rolling blast,brighten,matt polished,mirror pdished |
| Material |
Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S, A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571, 1.4541, 254Mo and etc. |
|
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc. |
|
|
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C-276, Monel400, Alloy20 etc. |
|
| Application |
Petrochemical industy;avation and aerospace industry;pharmaceutical industry;gas exhaust; power plant; ship buliding;water treament,etc. |
| Advantages | ready stock,faster delivery time;available in all sizes,austomized;high quality |
A403 Stainless Steel Pipe Fittings Specification
| A403 Stainless Steel Buttweld (B/W) Fittings Material | Size (in mm) |
Sch. & Swg. | SS Fittings Specification | SS Pipe Fittings Items |
| A403 WP304L Stainless Steel Seamless Fittings | 15 NB to 300 NB |
Sch. 5 to Sch. XXs |
A-403 B/W ANSI B16.9 |
Bend (Long & Short) R=2D,3D,5D,10D Etc elbow ( 180o, 90o & 45o) T ee (Equal & Unequal) Reducer (Con & Ecc) CAP Stubend (Long & Short) Nipple (Barrel) |
| A403 WP304L Stainless Steel Welded [ERW] Fittings | 15 NB to 600 NB |
Sch. 5 to Sch. 80s |
A-403 B/W ANSI B16.9 |
Dimensional Tolerances Straight Tees
| Nominal Pipe Size | 1/2 to 2.1/2 |
3 to 3.1/2 |
4 | 5 to 8 |
10 to 18 |
20 to 24 |
26 to 30 |
32 to 48 |
| Outside Dia at Bevel (D) |
+1.6 -0.8 |
1.6 | 1.6 | +2.4 -1.6 |
+4 -3.2 |
+6.4 -4.8 |
+6.4 -4.8 |
+6.4 -4.8 |
| Inside Dia at End | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 | +6.4 -4.8 |
+6.4 -4.8 |
| Center to End (C / M) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
| Wall Thk (t) | Not less than 87.5% of Nominal Wall Thickness | |||||||
We also produce pipes with special specifications according to customers’ requirements;If any inquiry, please feel free to contact by email : stainless@stpipefitting.cn
As we all know,stainless steel pipe fittings are widely used in petroleum,chemical industry,machinery,electric power etc.
Tee generally comes in two forms:straight and reducing. To guarantee the quality,tees are produced with all sorts of grades and standards,both seamless and welded according to ISO9001 and TS certificate. And the sizes range from 1/2' to 75' . What's more, we have sufficient goods with various specifications in stock to meet your demand as our warehouse covers 3500 square meters.
Shengtian Group is an approved manufacturer of ASTM A403 WP316L Stainless Steel Pipe Fitting Equal Tee and stainless steel 304 grade buttweld pipe fittings to requirements We also produce Pipe Fitting with special specifications according.
