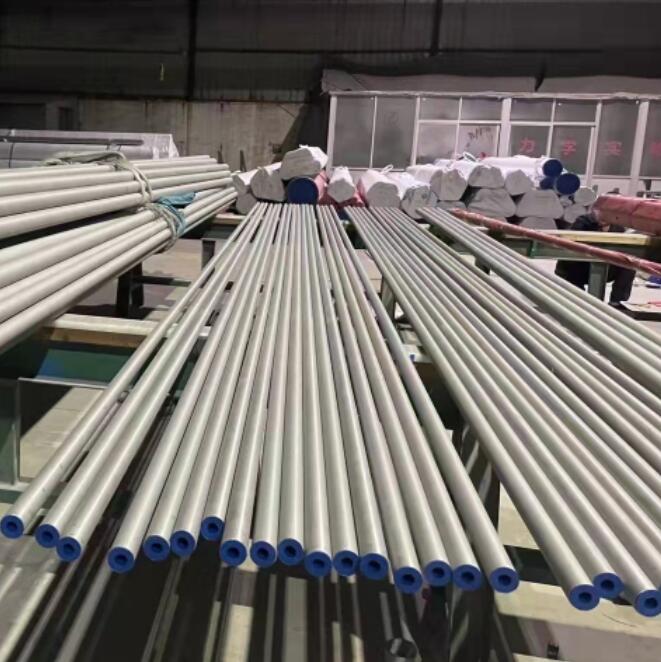

ASTM A269 TP316 Stainless Steel Pipe A269 TP316 is a brand of the ASTM A269 Standard.ASTM A269 Standard Specification for Seamless and Welded Austenitic Stainless Steel Pipe for General Service.
| Name | Stainless Steel ASTM A312/A213/A269 Tp316L/TP304/TP304L Cold/Hot Rolled Seamless Steel Pipe/Tube |
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Material Grade | TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S |
| S31803/S32205 S32750 S32760 | |
| Outer Diameter | Seamless Pipe: 4mm-812.80mm |
| Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm), | |
| Thickness | Seamless Pipe: 0.5mm - 60mm |
| Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm) | |
| Length | 5.8-6.1 m or as customers' request |
| Tolerance | Acording to the Standard. |
| Surface | pickling |
| 400G Mirror finish | |
| Test | UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers |
| Certificate | ISO9001-2008,ASME, PED |
| Delivery Time | 30-60Days, Depends on quantity |
| Material | C | Mn | P | S | Si | Cr | Mo | Ni | N |
| TP316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 2.0-3.0 | 10.0-14.0 | ≤0.10 |
| Material | Tensile Strength(MPa) | Yield Strength(MPa) | Elongation | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| TP316L | ≥485 | ≥170 | ≥40 | ≤95 | ≤217 |
Tests and Inspection Of ASTM A269 TP316L Stainless Steel Pipe
Flattening Test,Flaring Test,Hardness Test,Hydrostatic or Nondestruction Electric Test ( Eddy Current and Ultrasonic Testing)
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test, Transverse-guided face bend test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
Shengtian Group produce ASTM A269 TP316LN Stainless Steel Seamless pipe and Supply ASTM A269 TP316LN Stainless Steel pipe suitable for corrosive or high-temperature service for general applications.
We Supply ASTM A269 TP316LN Stainless Steel Seamless pipes Specification ASME SA / ASTM A249, A268, A269, A270, A554, A688, A778 and Grades 202, 304, 304L, 304H, 304LN, 309s, 310s, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L , 254 SMO, 6MO, 6MOLY, UNS S31254.
