ASTM A213/ASME SA213 covers low alloy steel pipes and minimum-wall-thickness, seamless ferritic and austenitic steel, boiler and super-heater tubes and austenitic steel heat-exchanger tubes, designated Grades TP304,TP304H,TP304L,TP310S, TP310HCbN, TP316, TP316H, TP316L etc.
Grades TP304H, TP309H, TP309HCb, TP310H, TP310HCb, TP310HCbN, TP316H, TP321H, TP347H, TP347HFG (fine grained) and TP348H are modifications of Grades TP304, TP309S, TP309Cb, TP310S, TP310Cb, TP316, TP321, TP347, and TP348, and are intended for high-temperature service, such as for superheaters and reheaters.
For ASTM A213 Seamless Tubes with diameters less than 1/8 in. [3.2 mm] in inside diameter or 0.015 in. [0.4 mm] in thickness，mechanical property requirements won’t apply. Tube with other dimensions may be furnished comply with other requirements.
| GRADE | TENSILE STRESS (MPA) MIN |
YIELD STR 0.2% PROOF (MPA) MIN |
ELONG (% IN 50MM) MIN |
HARDNESS | |
|---|---|---|---|---|---|
| ROCKWELL B (HR B) MAX | BRINELL (HB) MAX | ||||
| SS 316L Tube | 485 | 170 | 40 | 95 | 217 |
| SS 316H Tube | 515 | 205 | 40 | 95 | 217 |
| MATERIAL | C | MN | SI | P | S | CR | MO | NI | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| SA213 TP 316L Tube | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| SA213 TP 316H Tube | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - |
| MATERIAL | UNS NO | OLD BRITISH | EN/ EURONORM | SWEDISH SS |
JAPANESE JIS |
||
|---|---|---|---|---|---|---|---|
| BS | EN | NO | NAME | ||||
| SA213 TP 316L Tube | S31603 | 316S11 | - | 1.4404 | X2CrNiMo17-12-2 | 2348 | SUS 316L |
| SA213 TP 316H Tube | S31609 | 316S51 | - | - | - | - | - |
| Steel Grades | ASTM A213 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | NB | Nb | Ti | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.0-20.0 | 8.0-11.0 | … | … | … | … |
| TP304H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 18.0-20.0 | 8.0-11.0 | … | … | … | … |
| TP304L | 0.035 | 2.00 | 0.040 | 0.030 | 0.75 | 18.0-20.0 | 8.0-13.0 | … | … | … | … |
| TP310S | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 24.0-26.0 | 19.0-22.0 | 0.75 | … | … | … |
| TP310HCbN | 0.04-0.10 | 2.00 | 0.030 | 0.030 | 0.75 | 24.0-26.0 | 17.0-23.0 | … | 0.15-0.35 | 0.20-0.60 | … |
| TP316 | 0.08 | 2.00 | 0.040 | 0.030 | 0.75 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | … | … | … |
| TP316L | 0.035 | 2.00 | 0.040 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | … | … | … |
| TP316H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | … | … | … |
| TP321 | 0.08 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-20.0 | 9.0-13.0 | … | … | … | 5C-0.60 |
| TP321H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-20.0 | 9.0-13.0 | … | … | … | 4C-0.60 |
| TP347 | 0.08 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-19.0 | 9.0-13.0 | … | … | 10xC-1.00 | … |
| TP347H | 0.04-0.10 | 2.00 | 0.040 | 0.030 | 0.75 | 17.0-20.0 | 9.0-13.0 | … | … | 8xC-1.00 | … |
| Steel Grades | Heat Treatment | Temperure F (C) Min. | ASTM grain size NO. | Tensile Strength Ksi (MPa), Min. | Yield Strength Ksi (MPa), Min. | Elongation %, Min | Hardness | |
| Brinell | Rockwell | |||||||
| TP304 | Solution | 1900 (1040) | … | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP304L | Solution | 1900 (1040) | … | 70(485) | 25(170) | 35 | 192HBW/200HV | 90HRB |
| TP304H | Solution | 1900 (1040) | 7 | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP310S | Solution | 1900 (1040) | … | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP310HCbN | Solution | 2000 (1110) | 7 | 95(655) | 43(295) | 30 | 256HBW | 100HRB |
| TP316 | Solution | 1900 (1040) | … | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP316L | Solution | 1900 (1040) | … | 70(485) | 25(170) | 35 | 192HBW/200HV | 90HRB |
| TP316H | Solution | 1900 (1040) | 7 | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP321 | Solution | 1900 (1040) | 7 | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP321H | Solution | 2000(1100) | 7 | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP347 | Solution | 1900(1040) | … | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| TP347H | Solution | 2000(1100) | 7 | 75(515) | 30(205) | 35 | 192HBW/200HV | 90HRB |
| OD, mm | OD Tolerance |
|---|---|
| < 25.4 | +/- 0.10 |
| 25.4 – <= 38.1 | +/- 0.15 |
| > 38.1 -< 50.8 | +/- 0.20 |
| 50.8 -< 63.5 | +/- 0.25 |
| 63.5 -< 76.2 | +/- 0.30 |
| 76.2 – <= 101.6 | +/- 0.38 |
| > 101.6 – <= 190.5 | +0.38/-0.64 |
| > 190.5 – <= 228.6 | +0.38/-1.14 |
| OD, mm | WT Tolerance |
|---|---|
| <= 38.1 | +20%/-0 |
| > 38.1 | +22%/-0 |

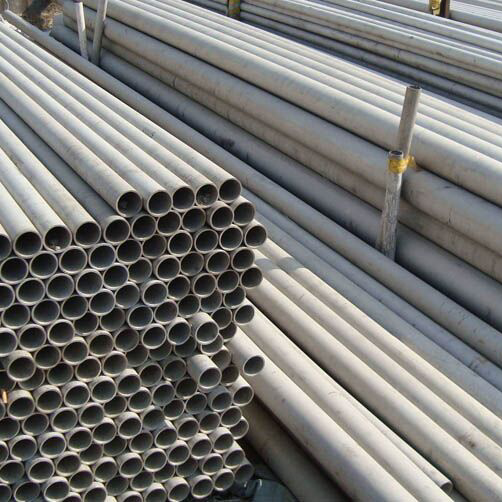

Shengtian Group Provide the ASME SA 213 Tp 316l pipes range from ½ inches to 100 inches in diameter. The ASTM A 213 Tp 316l ERW Tube and the cold drawn seamless pipes are usually produced up to 24 inches outer diameter whereas the 316l Stainless Steel Tube through electric fusion weld are made from 6 inches to 100 inches in diameter. The 316l Stainless Steel Square Tube is used in structural applications and in high pressure applications such as the hydraulics of high temperature services. The pipes are used in high heat applications like heat exchangers and in exhausts. The 316l Stainless Steel Rectangular Tube is used along with the square tubes. The 316l Stainless Steel Seamless Tubeis applicable in sensitive and accuracy demanding applications. We provide 316l SS Tubing in electric fusion welded (EFW), 316l Seamless Tube and in 316l Welded Tube types. Our products are manufactured according to international standards and are tested to assure the quality.
