The connection of stainless steel elbow includes: butt-welding, flanged connection, tri-clover, threaded and socket welding. And based on its production process, it can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, forged elbow and so on.
Standard:ANSI B16.9
Elbow Degree:45, 90, 180
Fitting Size:1/2″ Up To 10″
Schedule:Sch5s, 10S, 40S, 80S
Elbow Type:Long Radius, Short Radius, Straight
Material:Stainless Steel 304/304L, 316/316L, 321
We are the one where ASME B16.9 Short Radius Elbow is manufactured under the highly-qualified team and experienced team. Be it a Stainless-steel short radius elbow or any other material, we are the first choice of the client. This is because we deliver the product on time and by satisfying all the requirements of our delegates.At the same time, we can also customize stainless steel elbows for you according to the stainless steel elbow drawings.
ASME B16.9 Stainless Steel Elbow Manufacturer

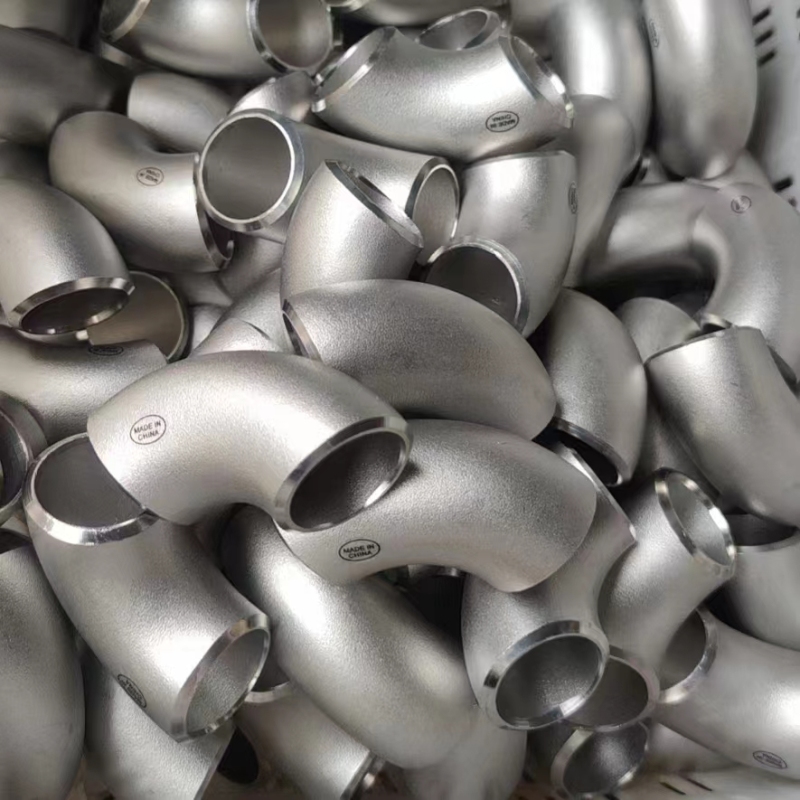

ASME B16.9 Stainless Steel 316L 90 Degree LR Elbows manufacturers
We are the standard manufacturer of stainless steel short radius elbow. Our products are being supplied to industries such as chemical, engineering and lot more. The grades of this products are ASTM A234, ASME SA234 WPB, WPHY 42, WPHY 46, WPHY 52, WPH 60 and more. The quality of ASME B16.9 Buttweld SR Pipe Elbow In China is trustworthy
ASME B16.9 Seamless Short Radius Elbow,Short Radius Elbow Pipe Fittings suppliers in China. Stainless Steel Short Radius Elbow manufacturers.
| Outside Diameter | Seamless Elbow ( 1/2″～32″), ERW / Welded / Fabricated Elbow (6″～120″) |
| Wall Thickness | 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Product’s Angle | 5° – 180° Elbows, 90° and 45° Long Radius Elbows, Long Radius Returns, Short Radius Elbows and Returns |
| Value-Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| International NORMS |
ASME B16.9-2012, ASME B16.25-2012, ASME B36.10M-2004, ASME B36.19M-2004 MSS SP-75-2008, MSS SP-43-2013 EN 10253-1-1999, EN 10253-2-2007, EN 10253-3-2008, EN 10253-4-2008 DIN 2605-1-1991, DIN 2605-2-1995 CSA Z245.11-13-2013 BS 1640-1-1962, BS 1640-2-1962, BS 1640-3-1968, BS 1640-4-1968, BS 1965-1-1963 GOST 17375-2001 AFNOR NF A 49-289-1990, AFNOR NF A 49-170-1-1999, AFNOR NF A 49-170-2-2009, AFNOR NF A 49-170-3-2009, AFNOR NF A 49-170-4-2009 ISO 3419-1981, ISO 5251-1981 GB/T 12459-2005, GB/T 13401-2005, GB/T 10752-2005 SH/T 3065-2005, SH/T 3408-2012 SY/T 0609-2006, SY/T 0518-2002, SY/T 0510-2010 DL/T 695-2014 GD 2000 GD 87-1101 |
Applications:
1. Oil and gas industry
2. Petrochemical industry
3. Power generation industry
4. Pharmaceutical industry
5. Shipbuilding industry
6. Papermaking industry
7. Metallurgy industry
