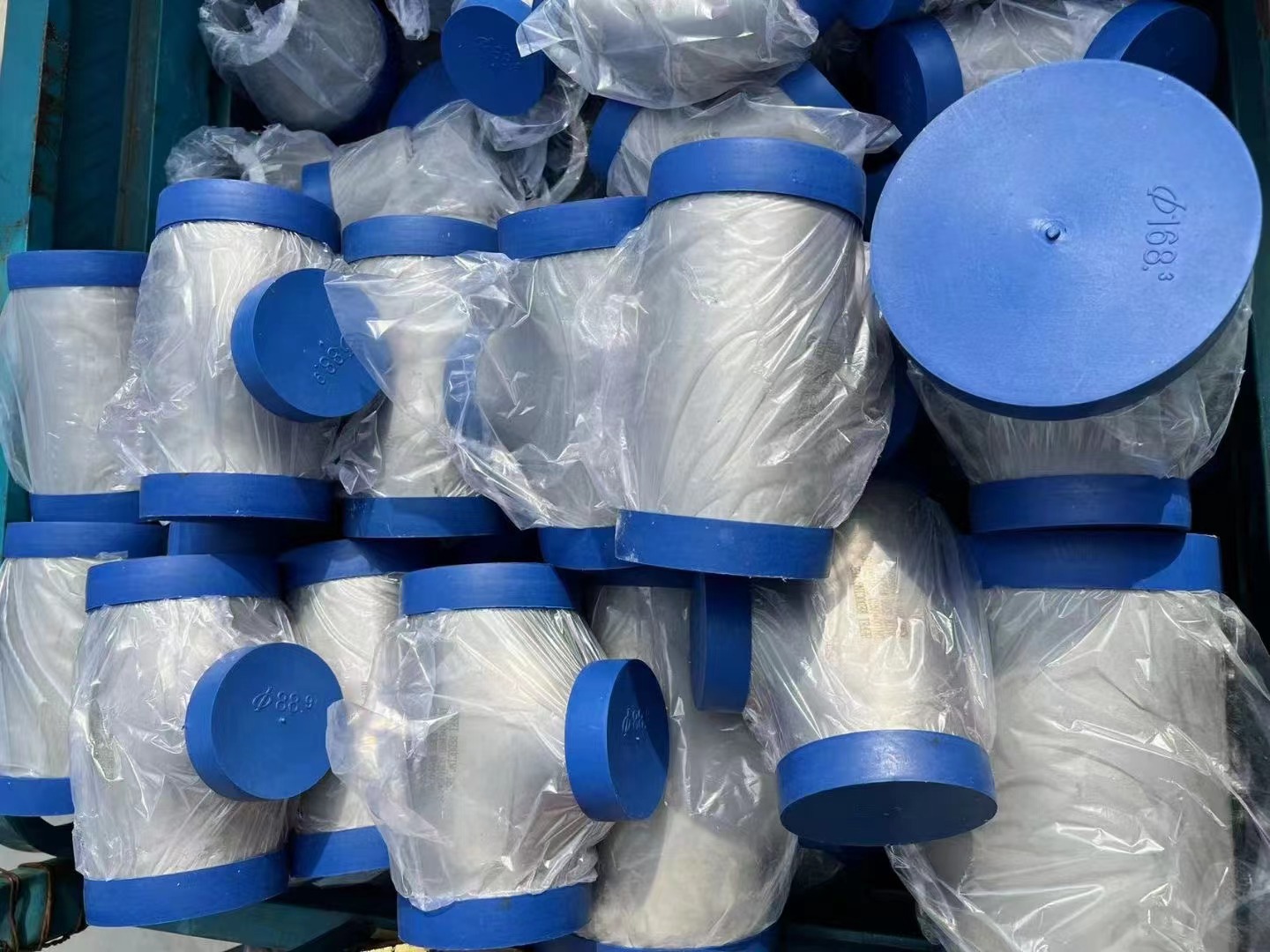

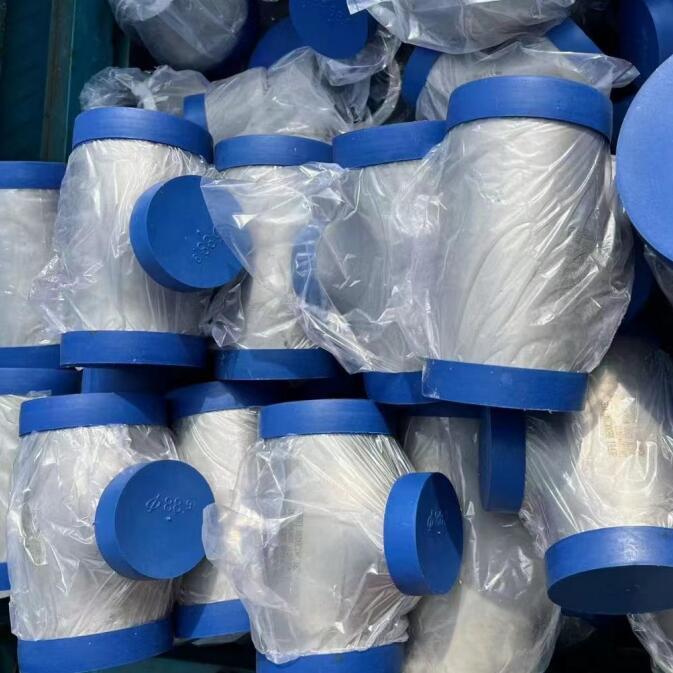

ASME B16.9 Buttweld Stainless Steel ASME A403 WP 316L Equal Tee

　　ASME B16.9 Tee manufacturer in China,We manufacture and supply ASME B16.9 Buttweld Stainless Steel ASME A403 WP 316L Equal Tee. We also supply ASME B16.9 pipe tee, ANSI B16.9 pipe tee,JIS pipe tee,DIN pipe tee and are supplied by us to Energy applications such as Oil & Gas Sectors, Nuclear Power, Hydel Power, Pharmaceutical plants Thermal Power, Mining & Construction, Captive power plants, Refineries, Fertilizers, Petrochemical Sectors, & Mineral Sectors, Steel Production Sectors, Paper manufacturing, Shipbuilding, and Pipeline Projects.

　　Stainless steel tee is also a kind of pipe fitting, which is generally divided into two forms: equal tee and reducing tee.

　　ASME B16.9 Buttweld Stainless Steel ASME A403 WP 316L Equal Tee is the branch pipe with the same diameter at both ends becomes an equal diameter tee; ASME B16.9 Buttweld Stainless Steel Reducing Tee is the branch pipes with the same diameter at both ends and different diameters from the other two are called reducing tees.

　　Tees are pipe fittings and pipe connectors, also known as pipe fitting tees or tee fittings, stainless steel equal diameter tees. The tee joint is used at the branch pipe of the main pipe.

　　The tee has three openings, namely, one inlet and two outlets; Or a kind of chemical pipe fitting with two inlets and one outlet, including T-shaped and Y-shaped pipe fittings, equal diameter pipe fittings and reducing pipe fittings, which are used at the junction of three identical or different pipes. The main function is to change the direction of the fluid.

　　Common representations:

　　For ASME B16.9 Buttweld Stainless Steel Equal Tee, such as "T3" (3 inch=DN80) tees, they represent equal diameter tees with an outer diameter of 3 inches.

　　For ASME B16.9 Buttweld Stainless Steel Reducing Tee, such as "T4 × four × 3.5 "(4 in.=DN100, 3.5 in.=DN90) refers to the reducing tee with the same diameter of 4 in. and the reducing tee with the diameter of 3.5 in.

　　The material is generally 10 # 20 # A3 Q235A 20g 20G 16Mn ASTM A234 ASTM A105 ASTM A403, etc. The outer diameter of the tee is 2.5 "- 60" (2.5 inch=DN65, 60 inch=DN1500), and the wall thickness is 3-60 mm. From 26 "- 60" (26 inch=DN650, 60 inch=DN1500), the tee is welded, and the wall thickness is 28-60 mm.

　　The pressure rating is Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80,Sch100,Sch120,Sch140,Sch160,XXS.
