Concentric reducer is a kind of fitting that be used for reducing piping size. Concentric reducer is most commonly used and often eccentric reducer used in piping in about pump and pipe rack area.
Eccentric reducer is most commonly used and often eccentric reducer used in piping in about pump and pipe rack area.
These reducers are used in various applications that involved in high pressure, vibration & temperature. These reducers are widely used in chemical, petroleum, shipbuilding, gas, power sectors.
Carbon Steel Reducers with A234 WPB and 1/2 to 56-inch Size (DN15 to DN1400)
Material Grade:
WPB WPC WP1 WP12 CL1 WP12 CL2 WP11 CL3 WP22 CL1 WP22 CL3 WP5 CL1 WP5 CL3 WPR WP91 WP911 WP11 CL1 WP11 CL2 WP9 CL1 WP9 CL3
Applications of Pipe Reducer:
Pipe Reducer
Hydraulic system
Pneumatic system
Pharmaceutical fittings
Air brake fittings
Gas fittings
Refrigerant fittings
Changing the piping diameter
Handling the expansion, misalignment or vibration problem
| REDUCERS | ||||
| inches | mm | D | d | H |
| 3/4 x 3/4 | 20 x 15 | 26,67 | 21,34 | 38,10 |
| 3/4 x 3/8 | 20 x 10 | 26,67 | 17,14 | 38,10 |
| 1 x 3/4 | 25 x 20 | 33,40 | 26,67 | 50,80 |
| 1 x 1/2 | 25 x 15 | 33,40 | 21,34 | 50,80 |
| 1 1/4 x 1 | 32 x 25 | 42,16 | 33,40 | 50,80 |
| 1 1/4 x 3/4 | 32 x 20 | 42,16 | 26,67 | 50,80 |
| 1 1/4 x 1/2 | 32 x 15 | 42,16 | 21,34 | 50,80 |
| 1 1/2 x 1 1/4 | 40 x 32 | 48,26 | 42,16 | 63,50 |
| 1 1/2 x 1 | 40 x 25 | 48,26 | 33,40 | 63,50 |
| 1 1/2 x 3/4 | 40 x 20 | 48,26 | 26,67 | 63,50 |
| 1 1/2 x 1/2 | 40 x 15 | 48,26 | 21,34 | 63,50 |
| 2 x 1 1/2 | 50 x 40 | 60,32 | 48,26 | 76,20 |
| 2 x 1 1/4 | 50 x 32 | 60,32 | 42,16 | 76,20 |
| 2 x 1 | 50 x 25 | 60,32 | 33,40 | 76,20 |
| 2 x 3/4 | 50 x 20 | 60,32 | 26,67 | 76,20 |
| 2 1/2 x 2 | 65 x 50 | 73,02 | 60,32 | 88,90 |
| 2 1/2 x 1 1/2 | 65 x 40 | 73,02 | 48,26 | 88,90 |
| 2 1/2 x 1 1/4 | 65 x 32 | 73,02 | 42,16 | 88,90 |
| 2 1/2 x1 | 65 x 25 | 73,02 | 33,40 | 88,90 |
| 3 x 2 1/2 | 80 x 65 | 88,90 | 73,02 | 88,90 |
| 3 x 2 | 80 x 50 | 88,90 | 60,32 | 88,90 |
| 3 x 1 1/2 | 80 x 40 | 88,90 | 48,26 | 88,90 |
| 3 x 1 1/4 | 80 x 32 | 88,90 | 42,16 | 88,90 |
| 3 1/2 x 3 | 90 x 80 | 101,60 | 88,90 | 101.60 |
| 3 1/2 x 2 1/2 | 90 x 65 | 101,60 | 73,02 | 101.60 |
| 3 1/2 x 2 | 90 x 50 | 101,60 | 60,32 | 101.60 |
| 3 1/2 x 1 1/2 | 90 x 40 | 101,60 | 48,26 | 101.60 |
| 3 1/2 x 1 1/4 | 90 x 32 | 101,60 | 42,16 | 101.60 |
| 4 x 3 1/2 | 100 x 90 | 114,30 | 73,02 | 101.60 |
| 4 x 3 | 100 x 80 | 114,30 | 88,90 | 101.60 |
| 4 x 2 1/2 | 100 x 65 | 114,30 | 73,02 | 101.60 |
| 4 x 2 | 100 x 50 | 114,30 | 60,32 | 101.60 |
| 4 x 1 1/2 | 100 x 40 | 114,30 | 48,26 | 101.60 |
| 5 x 4 | 125 x 100 | 141,30 | 114,30 | 127,00 |
| 5 x 3 1/2 | 125 x 90 | 141,30 | 101,60 | 127,00 |
| 5 x 3 | 125 x 80 | 141,30 | 88,90 | 127,00 |
| 5 x 2 1/2 | 125 x 65 | 141,30 | 73,02 | 127,00 |
| 5 x 2 | 125 x 50 | 141,30 | 60,32 | 127,00 |
| 6 x 5 | 150 x 125 | 168,27 | 141,30 | 139,7 |
| 6 x 4 | 150 x 100 | 168,27 | 114,30 | 139,7 |
| 6 x 1/2 | 150 x 90 | 168,27 | 101,60 | 139,7 |
| 6 x 3 | 150 x 80 | 168,27 | 88,90 | 139,7 |
| 6 x 1/2 | 150 x 65 | 168,27 | 73,02 | 139,7 |
| 8 x 6 | 200 x 150 | 219,07 | 168,27 | 152,4 |
| 8 x 5 | 200 x 125 | 219,07 | 141,30 | 152,4 |
| 8 x 4 | 200 x 100 | 219,07 | 114,30 | 152,4 |
| 8 x 3 1/2 | 200 x 90 | 219,07 | 101,60 | 152,4 |
| 10 x 8 | 250 x 200 | 273,05 | 219,07 | 177,8 |
| 10 x 6 | 250 x 150 | 273,05 | 168,27 | 177,8 |
| 10 x 5 | 250 x 125 | 273,05 | 141,30 | 177,8 |
| 10 x 4 | 250 x 100 | 273,05 | 114,30 | 177,8 |
| 12 x 10 | 300 x 250 | 323,85 | 273,05 | 203,2 |
| 12 x 8 | 300 x 200 | 323,85 | 219,07 | 203,2 |
| 12 x 6 | 300 x 150 | 323,85 | 168,27 | 203,2 |
| 12 x 5 | 300 x 125 | 323,85 | 141,30 | 203,2 |
| 14 x 12 | 350 x 300 | 355,60 | 323,85 | 330,2 |
| 14 x 10 | 350 x 250 | 355,60 | 273,05 | 330,2 |
| 14 x 8 | 350 x 200 | 355,60 | 219,07 | 330,2 |
| 14 x 6 | 350 x 150 | 355,60 | 168,27 | 330,2 |
| 16 x 14 | 400 x 350 | 406,40 | 355,60 | 355,6 |
| 16 x 12 | 400 x 300 | 406,40 | 323,85 | 355,6 |
| 16 x 10 | 400 x 250 | 406,40 | 273,05 | 355,6 |
| 16 x 8 | 400 x 200 | 406,40 | 219,07 | 355,6 |
| 18 x 16 | 450 x 400 | 457,20 | 406,40 | 381,0 |
| 18 x 14 | 450 x 350 | 457,20 | 355,60 | 381,0 |
| 18 x 12 | 450 x 300 | 457,20 | 323,85 | 381,0 |
| 18 x 10 | 450 x 250 | 457,20 | 273,05 | 381,0 |
| 20 x 18 | 500 x 450 | 508,00 | 457,20 | 508,0 |
| 20 x 16 | 500 x 400 | 508,00 | 406,40 | 508,0 |
| 20 x 14 | 500 x 350 | 508,00 | 355,60 | 508,0 |
| 20 x 12 | 500 x 300 | 508,00 | 323,85 | 508,0 |
| 22 x 20 | 550 x 500 | 558,80 | 508,00 | 508,0 |
| 22 x 18 | 550 x 450 | 558,80 | 457,20 | 508,0 |
| 22 x 16 | 550 x 400 | 558,80 | 406,40 | 508,0 |
| 22 x 14 | 550 x 350 | 558,80 | 355,60 | 508,0 |
| 24 x 22 | 600 x 550 | 609,6 | 558,80 | 508,0 |
| 24 x 20 | 600 x 500 | 609,6 | 508,00 | 508,0 |
| 24 x 18 | 600 x 450 | 609,6 | 457,20 | 508,0 |
| 24 x 16 | 600 x 400 | 609,6 | 406,40 | 508,0 |
Length of reducers The length of a Reducer is very short in relation to the diameter, so in some dimensions the transition from one to another diameter is very abruptly. For example, a reducer 6″ x 2½” has a length of 140 mm. On this short distance a pipeline will be reduced from 168.3 mm O.D. to 73 mm O.D. During the design phase of a new pipe system, a piping designer certainly must think about it.
Shengtian Group is specialized in producing stainless steel pipe，stainless steel pipe fittings,stainless steel flanges,stainless steel elbows,stainless steel tees,cross, reducer (concentric and eccentric reducers),stub ends and caps. Products variety,sizes diverse,beautiful appearance,stable performance,not only have variety materials (201,301,304,304L,316,316L,321,310S）welding and seamless elbows,also can produce according to the standard of GB12459,ASTM 403,DIN 2605(elbow),DIN 2609(Stub End),DIN 2615 (TEE),DIN2616 (Reducers) standard pipe fittings,stainless steel pipe fittings include A & B series,long radius and short radius,and we can produce the special products according to clients request.Email : stainless@stpipefitting.cn

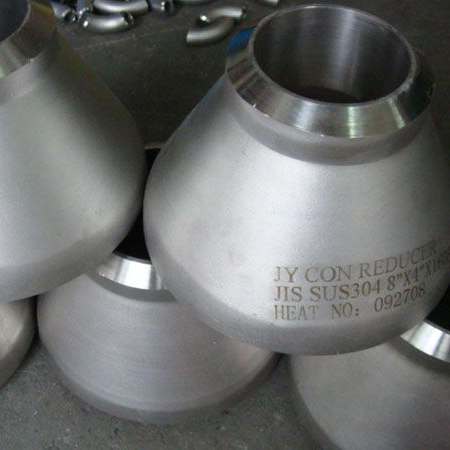

We carry a full line of ASME B16.9 ASME A403 WP 304 Stainless Steel Concentric Reducer,304 & 316 stainless steel butt weld reducers including concentric reducers and butt weld eccentric reducers that meet strict certifications for today's pipe systems.
Our reducers have high-strength and corrosion resistance for use in various industries. Our high-quality reducers come in a variety of sizes and schedules starting from S/5 to S/80.
