Specification

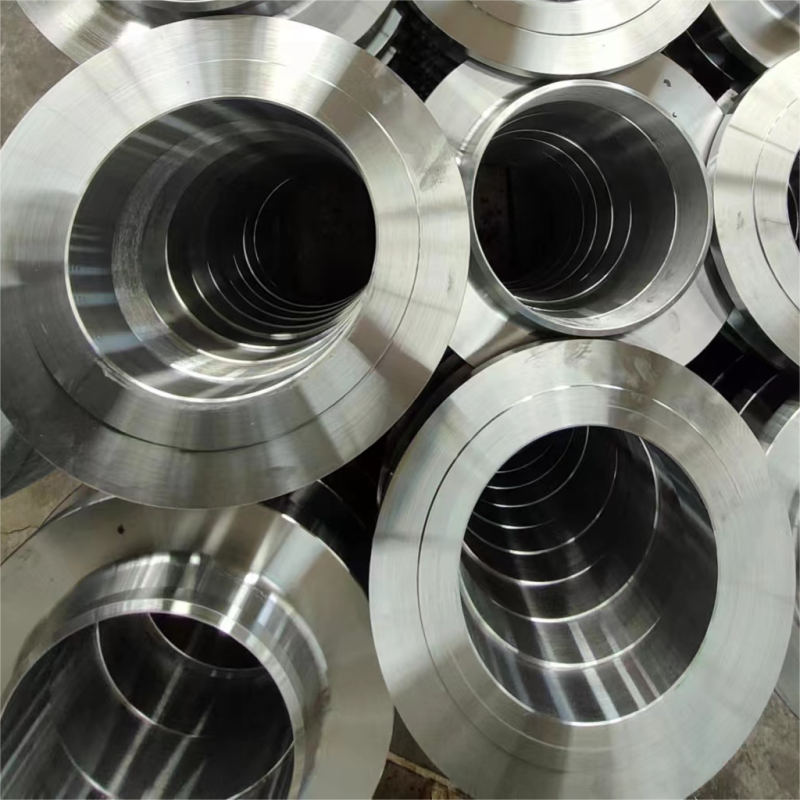

ASME B16.5 ASTM A182 F304 Plate Flange RF 16" 150LB
Material: 304 (UNS S30400)
Dimensions: 16" (DN400)
Standard: ASME B16.5
Plate flanges are mainly made of high-quality steel plates. They are similar to slip flanges but do not have a hub and also require two fillet welds. Most plate flanges are produced to DIN, JIS, UNI, BS or GOST standards. When constructing a pipeline, the length of the pipe to be used is not always known. By fabricating the pipe separately from the plate flange, a welder can cut the pipe to length and weld the plate flange in place, joining the pipe at any desired length. The plates can also be welded to the pipe at a slight angle, allowing the connection of two pipes that may not be precisely aligned.
Product Description
| Size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Plate Fabricated Flanges |
| Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Welding Plate Flanges |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar Plate Blank Flanges |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar Square Plate Flange |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Types | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc | |
| Plate Flange Technique | Forged, Heat treated and machined |
| Connect Type | FF,RF,RTJ |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
ASME B16.5 ASTM A182 304L Stainless Steel RF Plate Flange Manufacturers in China, ASTM A182 304L Stainless Steel RF Plate Flanges are most commonly used in oil and gas, where two plate flange are bolted together with a gasket in between them. The plate flange will have bolt holes all around the perimeter and will be used to create junctions,pipe joints and pipe tees.
