Specification : ASTM A182 / ASME SA182
Dimension : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Class / Pressure Rating : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Origin : Indian Origin, European Origin, Japanese Origin
Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests
Description
| Type | WN、SO、BL、SW、TH、LJF |
| Size | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 3 1/2", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24", 26", 28", 30", 32", 34", 36", 38", 40", 42", 44", 46", 48" |
| DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN90, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN550, DN600, DN650, DN700, DN750, DN800, DN850, DN900, DN950, DN1000, DN1050, DN1100, DN1150, DN1200 | |
| Material | Carbon Steel: A105/RST37.2/C22.8/Q235, etc. |
| Stainless Steel: 304/304L,316/316L,321,ect. | |
| Pressure | Class 150;Class 300;Class 600;Class 900;Class 1500;Class 2500 |
| PN2.5;PN6;PN10;PN16;PN25;PN40;PN63;PN100;PN160;PN250;PN320;PN400 | |
| Wall Thickness | Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS. |
| Standard | ANSI/ASME B16.5, ANSI/ASME B16.47, DIN, JIS, GOST, UNI, etc. |
| Surface Treatment | Oiled or Painting or Sandblast or Galvanized |
| Application | Because the flange has good comprehensive performance, it is widely used in basic projects such as chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire fighting, electric power, aerospace, shipbuilding, and so on. |
| Service | OEM or ODM Service Available |
| Packing | Wooden case, pallet or as customers' requirement |
| Delivery Items | FOB(30% down payment in advance, the balance before shipment) CIF or CRF(30% in advance, the balance against with the copy of B/L) |
| Delivery Time | Within 15-45 days after receipt of advance payment |
| Advantage | 1. More than 10 years of flange manufacturing experience. 2. Near Tianjin Port and Tianjin Airport. 3. We provide: We have high-quality processing equipment. We promise on-time, stable quality, just price, client confidentiality. 4. With samples and order: We can offer dimension reports, material certification. |
| Inspection | Optical Spectrometer X-ray Detector QR-5 Fully Automatic Computer Carbon Sulfur Analyzer Measurement Tensile Test Finished Product NDT UT(Digital UItrasonic Flaw Detector) Metallographic Analysis Imaging Studies Magnetic Particle Inspection |
|
ANSI/ASME/ASA B16.5 150lb/sq.in. Flange RF
|
|||||||||
|
ø
|
D
|
b
|
g
|
m
|
J
|
k
|
Holes
|
l
|
Kg.
|
|
1/2"
|
88,9
|
11,1
|
34,9
|
30,2
|
22,3
|
60,3
|
4
|
15,9
|
0,400
|
|
3/4"
|
98,4
|
12,7
|
42,9
|
38,1
|
27,7
|
69,8
|
4
|
15,9
|
0,700
|
|
1"
|
107,9
|
14,3
|
50,8
|
49,2
|
34,5
|
79,4
|
4
|
15,9
|
0,800
|
|
1 1/4"
|
117,5
|
15,9
|
63,5
|
58,8
|
43,2
|
88,9
|
4
|
15,9
|
1,100
|
|
1 1/2"
|
127,0
|
17,5
|
73,0
|
65,1
|
49,5
|
98,4
|
4
|
15,9
|
1,400
|
|
2"
|
152,4
|
19,0
|
92,1
|
77,8
|
62,0
|
120,6
|
4
|
19,0
|
2,200
|
|
2 1/2"
|
177,8
|
22,2
|
104,8
|
90,5
|
74,7
|
139,7
|
4
|
19,0
|
3,600
|
|
3"
|
190,5
|
23,8
|
127,0
|
107,9
|
90,7
|
152,4
|
4
|
19,0
|
4,100
|
|
3 1/2"
|
215,9
|
23,8
|
139,7
|
122,2
|
103,4
|
177,8
|
8
|
19,0
|
5,200
|
|
4"
|
228,6
|
23,8
|
157,2
|
134,9
|
116,1
|
190,5
|
8
|
19,0
|
5,600
|
|
5"
|
254,0
|
23,8
|
185,7
|
163,6
|
143,8
|
215,9
|
8
|
22,2
|
6,300
|
|
6"
|
279,4
|
25,4
|
215,9
|
192,1
|
170,7
|
241,3
|
8
|
22,2
|
7,500
|
|
8"
|
342,9
|
28,6
|
269,9
|
246,1
|
221,5
|
298,4
|
8
|
22,2
|
12,600
|
|
10"
|
406,4
|
30,2
|
323,8
|
304,8
|
276,3
|
361,9
|
12
|
25,4
|
18,500
|
|
12"
|
482,6
|
31,7
|
381,0
|
365,1
|
327,1
|
431,8
|
12
|
25,5
|
28,000
|
|
14"
|
533,4
|
34,9
|
412,7
|
400,0
|
359,1
|
476,2
|
12
|
28,6
|
36,000
|
|
16"
|
596,9
|
36,5
|
469,9
|
457,2
|
410,5
|
539,7
|
16
|
28,6
|
46,000
|
|
18"
|
635,0
|
39,7
|
533,4
|
504,8
|
461,8
|
577,8
|
16
|
31,7
|
50,000
|
|
20"
|
698,5
|
42,9
|
584,2
|
558,8
|
513,1
|
635,0
|
20
|
31,7
|
64,000
|
|
22"
|
749,3
|
46,0
|
641,2
|
609,6
|
564,4
|
692,1
|
20
|
34,9
|
72,000
|
|
24"
|
812,8
|
47,6
|
692,1
|
663,6
|
615,9
|
749,3
|
20
|
34,9
|
89,000
|

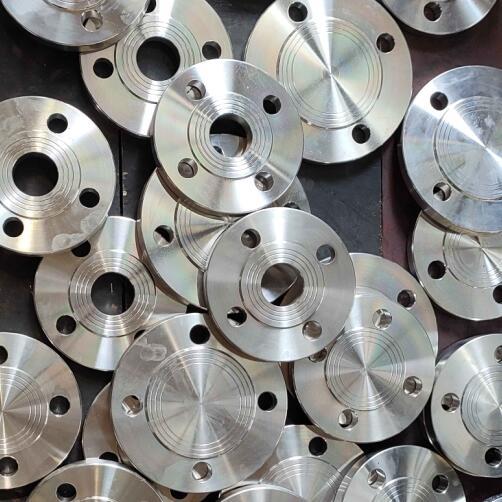

ASME B16.5 A182 F304 150# Forged RF SS Flange are components used to connect pipes together. It needs to be bolted. The ASME B16.5 A182 F304 Forged RF SS Flange can withstand high temperatures. We are ASME B16.5 flange manufacturer in China. We also supply SS 304 butt weld flange type. If you want to know more about flange information or make inquiries
