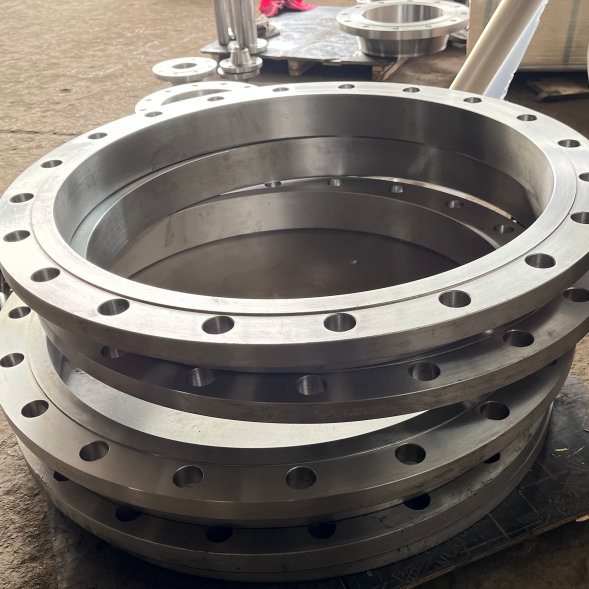

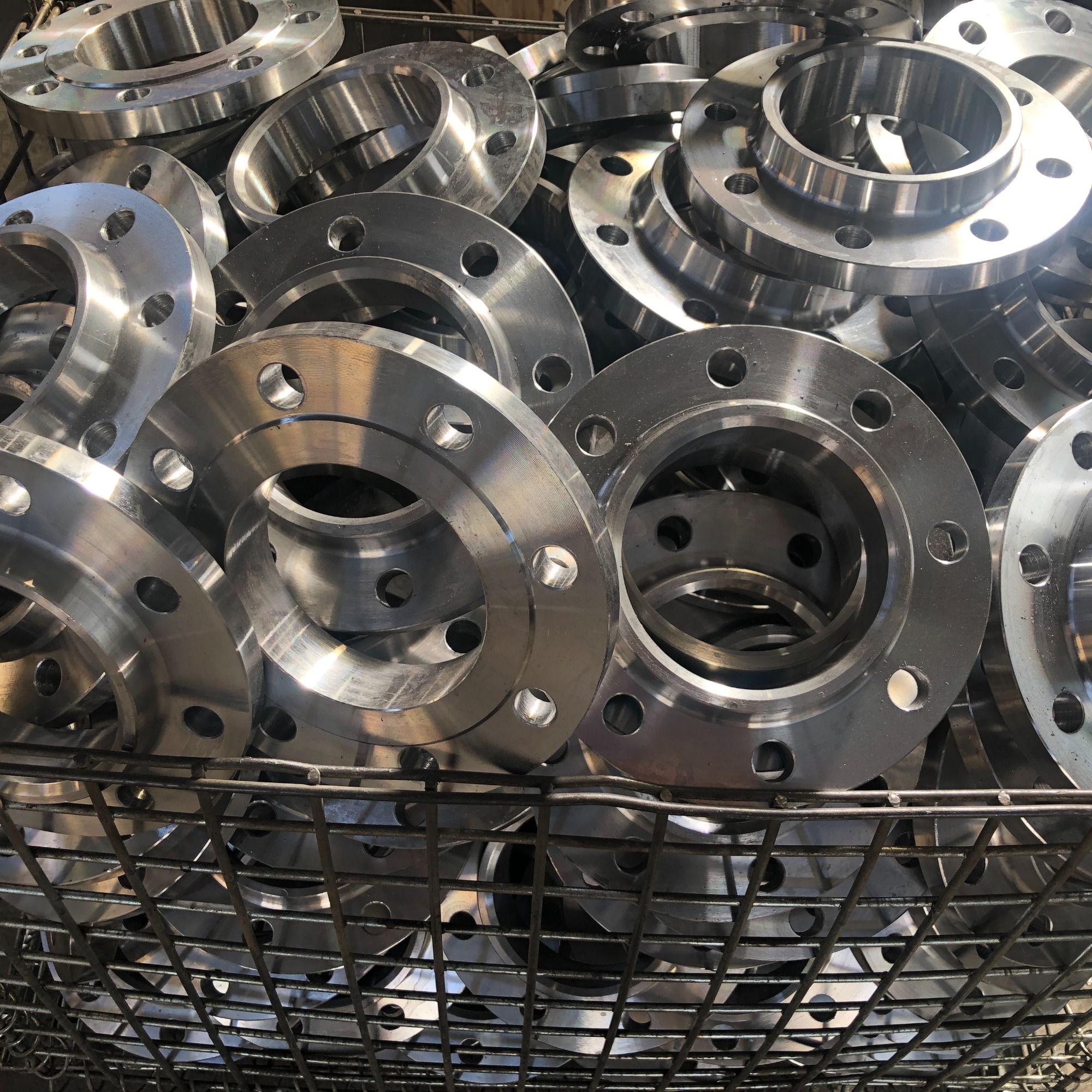

The ANSI B16.5 A182 316L Forged RF Stainless Steel Plate Flange we produce are strictly tested in every step from the procurement of raw materials to delivery. ANSI B16.5 A182 F304 Forged RF Stainless Steel Plate Flanges that pass the test will be shipped to customers.
316L Flange:
Shengtian Group is one of the well-established producers for SS 316 Flanges, which performs well in boiling 20 % phosphoric acid. Our 316L Stainless Steel Flanges can also be used in the food and pharmaceutical process industries where it is utilized to handle hot organic and fatty acids in an effort to minimize product contamination. These 316L Flange performs well in fresh water service even with high levels of chlorides. In most instances, the corrosion resistance of our ANSI B16.5 SS F316 Flanges will be roughly equal in most corrosive environments.
However, in environments that are sufficiently corrosive to cause intergranular corrosion of welds and heat – affected zones, these Stainless Steel 316L Pipe Flanges should be used for the reason that of its low carbon content. Our SS 316L Weld Neck Flanges can be easily welded and processed by standard shop fabrication practices. Forming working temperatures of 1700 Degree F – 2200 Degree F (927 Degree – 1204 Degree C) are recommended in these SS WERKSTOFF NR. 1.4404 Flanges for most hot working processes.
Specification : ASTM A182 / ASME SA182
Dimension : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Class / Pressure Rating : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Origin : Indian Origin, European Origin, Japanese Origin
Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests
|
ASME/ANSI B 16.5 |
Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
|
PRESSURE CLASS |
150, 300, 400, 600, 900, 1500, 2500 |
|
ASME/ANSI B 16.47 |
Welding Neck Flange, Blind Flange [Series A & B] |
|
PRESSURE CLASS |
75, 150, 300, 400, 600, 900 |
|
ASME/ANSI B 16.36 |
Welding Neck Flange, Slip on Flange, Threaded Flange |
|
PRESSURE CLASS |
300, 400, 600, 900, 1500, 2500 |
|
BS 4504 SEC 3.1 |
Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
|
PRESSURE CLASS |
PN 2.5 TO PN 40 |
|
BS 4504[PART 1] |
Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
|
PRESSURE CLASS |
PN 2.5 TO PN 400 |
|
BS 1560 BOSS |
Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
|
PRESSURE CLASS |
150, 300, 400, 600, 900, 1500, 2500 |
|
BS10 |
Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
|
TABLE |
D, E, F, H |
|
DIN FLANGES |
DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
|
PRESSURE CLASS |
PN 6 TO PN 100 |
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
|
SS 316L |
1.4404 / 1.4435 |
S31603 |
SUS 316L |
316S11 / 316S13 |
03Ch17N14M3 / 03Ch17N14M2 |
Z3CND17‐11‐02 / Z3CND18‐14‐03 |
X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 316 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
16.00 - 18.00 |
2.00 - 3.00 |
11.00 - 14.00 |
67.845 min |
|
SS 316L |
0.035 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
16.00 - 18.00 |
2.00 - 3.00 |
10.00 - 14.00 |
68.89 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
8.0 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
|
8.0 g/cm3 |
1399 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
