Stainless Steel Pipe Elbow Specifications: |
||||||||
| Size: | 1/8" NB TO 48" NB. (Seamless & 100% X-Ray Welded, Fabricated) | |||||||
| Specifications : | ASTM B403 / ASME SB403 | |||||||
| Standard : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 | |||||||
| Grade: | 304, 316, 321, 321Ti, 347, 347H, 904L, 2205, 2507 | |||||||
| Thickness : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS | |||||||
| Bending Radius : | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom | |||||||
| Type : | Seamless / Welded / Fabricated | |||||||
| Application |
Electricity, Petroleum, Gas, Petrifaction, Chemical Industry, Ship, Heating, Papermaking, Metallurgy | |||||||
What is ASTM A403 WP304H Stainless Steel Pipe Bends?
ASTM A403 WP304H Stainless Steel Pipe Bends are pipe fittings made from stainless steel grade ASTM A403 WP304H. These pipe bends are designed to change direction or angles in piping systems while maintaining stainless steel's corrosion resistance & high-temperature capabilities.
What are the Applications of ASTM A403 WP304H Pipe Bends?
ASTM A403 WP304H Pipe Bends are widely used in industries such as oil and gas, chemical processing, pharmaceuticals, food and beverage, and power generation. These pipe bends are specifically designed to handle high-temperature & corrosive environments. They are used to change the direction of fluid flow, navigate around obstacles, and accommodate space constraints in piping systems.
What are the Advantages of ASTM A403 WP304H Pipe Bends?
The advantages of ASTM A403 WP304H Pipe Bends include excellent corrosion resistance, high-temperature stability, durability & suitability for various industries such as oil and gas, chemical processing, pharmaceuticals, food and beverage & power generation.
Specifications : ASTM A403 & ASME SA403
Dimensions : ASME/ANSI B16.9 / B16.28 and MSS SP-43 / SP-75
Size : Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
Outer Diameter : 38.0 mm – 206.0 mm
Wall Thickness : 1.5 mm / 2.0 mm / 3.0 mm – greater wall thickness at request
Bend Radii : 75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mm
Bending Radius(R): R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Bending angle (θ): 15°, 30°, 45°, 60°, 90°, 135°, 180°
| ASME Pipe Bend | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN Pipe Bend | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN Pipe Bend | EN10253-1, EN10253-2 |
| ASTM A403 | ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 10.5 | - |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| Stainless Steel 304H Pipe Bend | Stainless Steel WP304H Buttweld Bend |

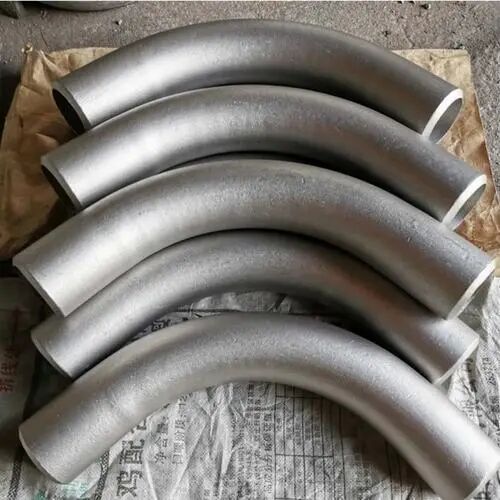

| Stainless Steel 304H Mandrel Bends | Stainless Steel 304H Long Radius Bend |
| Stainless Steel UNS S30409 Piggable Bend | Stainless Steel 304H Hot Induction Bend |
| SS 304H Seamless Pipe Bend Suppliers | ANSI 304H Welded Pipe Bend |
| SS WP304H U Pipe Bend Dealer | SS 304H J Pipe Bend Exporter |
| SS 304H Mitered Pipe Bend Stockholder | Steel 304H 3D Pipe Bend Distributors |
| Stainless Steel SUS 304H 5D Pipe Bend | SS 304H 10D Pipe Bend Manufacturer |
| Stainless Steel DIN 1.4301 2.5D Pipe Bend | Stainless Steel 304H 22D Pipe Bend |
| Stainless Steel WP304H Customized Pipe Bend | Stainless 304H Bend |
| ANSI B16.9 SS 304H 12D Pipe Bending | SS 304H High Pressure Bending Stockist |
| ASTM A403 SS 304H 180 Degree Pipe Bend | ASME SA403 SS 304H DIN Pipe Bend |
| Stainless Steel 304H EN Pipe Bend | 304H SS ASME Pipe Bend |
| A403 SS WP304H Small Size Pipe Bending | ASME SA403M SS 304H Pipe Bend Elbow |
| Steel 304H 90 Degree Pipe Bend | SS WP304H 160 Deg Pipe Bend |
We are renowned most acclaimed Source, Stock, Distribution, Manufacturer, Suppliers, Stockholder, Traders, Wholesaler, Dealer, Distributor, Importer Exporter, Fabricator, Stockist of ANSI B16.28 ASTM A403 304H Pipe Bends in Stainless Steel.For More Information About ASTM A403 WP304H Stainless Steel Pipe Bends Please Send an Email to stainless@stpipefitting.cn
