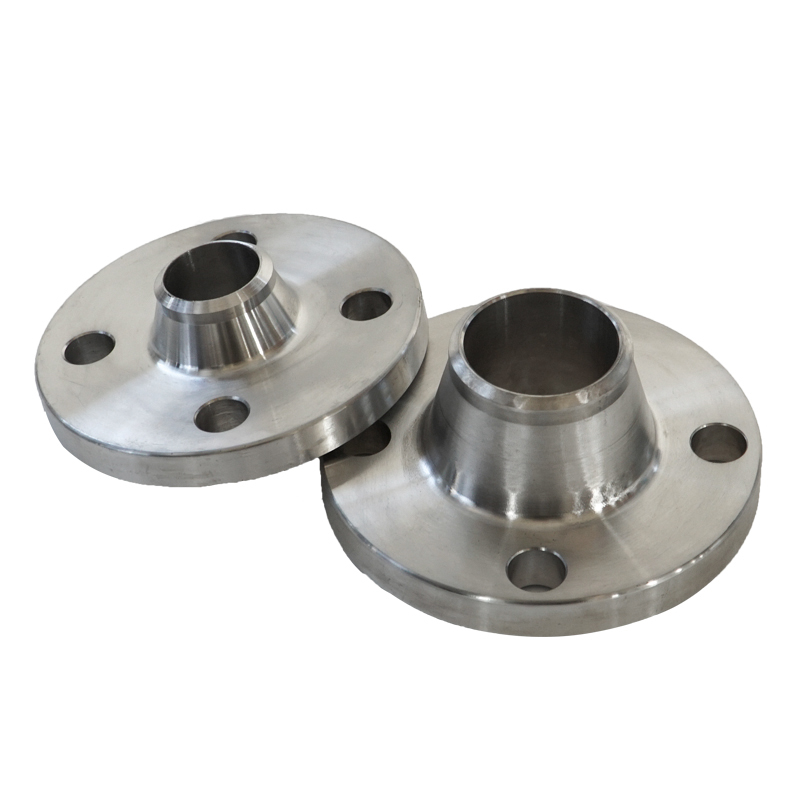

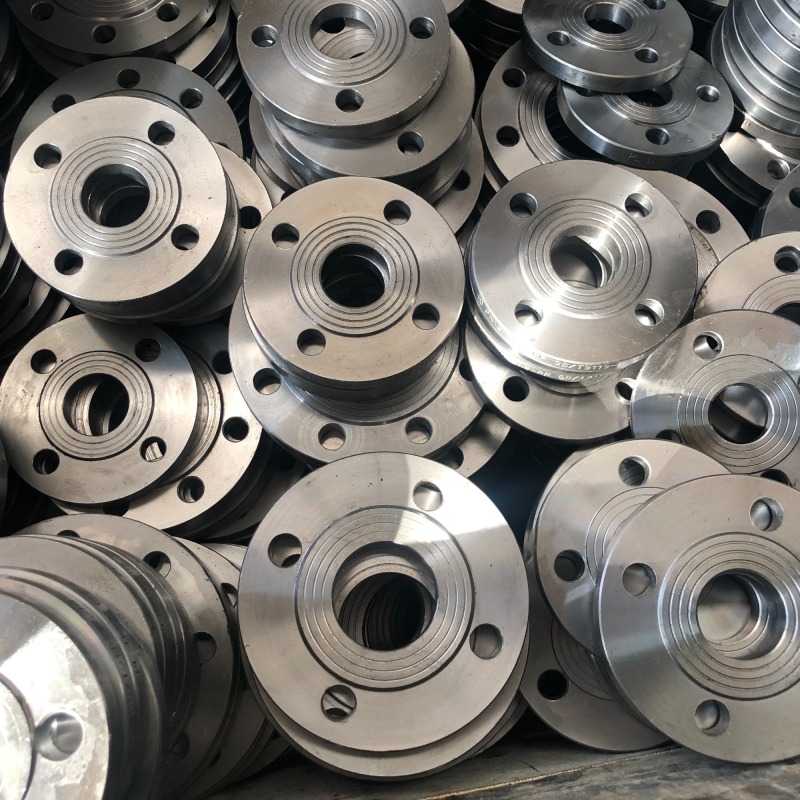

5 Inch 316l Astm Forged For Water Line Stainless Steel Threaded pipe flange is speedy and simple but not suitable for high presser and temperature applications. Threaded pipe flanges are mostly used in utility services such as air and water.
What is the 316Lthreaded flange
Stainless Steel 316L Flanges are made up of an austenitic stainless steel that has chromium, nickel and molybdenum in the content. The 4% molybdenum addition to the composition makes a difference in the mechanical properties as well as physical properties. There are different types of flanges such as the blind flanges, slip on flanges, weld neck flanges and plate flanges. Each of them serves a different and unique purpose in the piping.
SS 316 Flange Standards / Types And Pressure Class :
ASME/ANSI B 16.5:Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS:150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47:Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS:75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36:Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS:300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1:Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS:PN 2.5 TO PN 40
BS 4504[PART 1]:Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS:PN 2.5 TO PN 400
BS 1560 BOSS:Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS:150, 300, 400, 600, 900, 1500, 2500
BS10:Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE:D, E, F, H
DIN FLANGES:DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS:PN 6 TO PN 100
| Type of flange: | (PL)Plate-type Flat Welding Flange, (SO)Slip-on Neck Flange, (WN)Butt Welding Neck Flange, (SW) Socket Welding Flange,TH) Thread Flange, (PJ/SE) Butt Welding Ring Loose Flange, (PJ/PR) Flat Welding Ring Loose Flange,(BL)Blind Flange , (BL(S))Lining Blind Flange |
||
| Style of sealing face: | (RF),(FF),(MFM),(LG),(RG),LJ, TG, FM,and R.T.J. Etc | ||
| Standard: | GB/T9112-9124;HG20592-20635;SH3406;ANSIB16.5;JISB2220 or as per drawings |
||
| Materials | (stainless steel) include: | 1.4301, 1.4306, 1.4401, 1.4404, 1.4541 SUS F304, SUS F304L, SUSF316, SUSF316L, SUS F321 ASME F304, ASME F304L, ASME F316, ASME F316L, ASME F321 and so on. |
|
| Nickle alloy flange | 200,201,625,800 alloy | ||
| Titanium alloy | GR1,GR2,GR5 etc | ||
| Nominal pressure: | PN6 - PN160, 150LBS-2500LBS, 5K-40K ,0.25-25Mpa | ||
| other: | Special design available | ||
| Package: | wooden box package | ||
| MOQ | 1PC |
||
