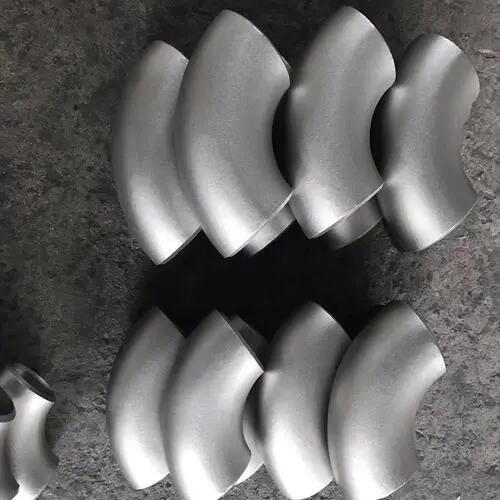

Shengtian Group is an ISO certified manufacturer and supplier of 90 Degree ASME B16.9 ASME A403 WP304 Butt Weld Stainless Steel Elbow. Our offered SS 304L Butt Weld Elbow contains high nickel and chromium content ranging from 8% to 10.5%.Stainless Steel 304 Buttweld Pipe Fittings are component of piping which are used to connect two pieces of pipes or other components together. The 304 material is a chromium nickel stainless steel which is one of the most used types of steel in the word. There are different types of pipe fittings in this grade of steel such as tees, elbows, couplings, crosses and more.
Product Description
▶Degree: 22.5 Deg, 45 Deg, 90 Deg, 180 Deg
▶Size: SCH5 to SCH160
▶Wall thickness: sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
▶Standards: ANSI B16.9, ASME,DIN2506, JIS, BS,GOST
▶Material: ASTM/ASME A403 WP 304-304L, WP 316-316L,WP 321,201
▶Surface treatment: Transparent oil, rust-proof black oil or hot galvanized
▶Packing: wooden case, pallet or as customers' requirement
▶Applications: Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
▶Process: butt welding, seamless, threaded , or socketed
▶Delivery time: 7 after receipt of advanced payment
▶Certification: ISO9001:2000
▶Type: L/R 45°Elbow, S/R 45°Elbow, L/R 90°Elbow, S/R 90°Elbow, L/R 180°Elbow, S/R 180°Elbow, Large Diameter Elbow
Our 90 Degree ASME B16.9 ASME A403 WP304 4 Inch Butt Weld Stainless Steel Elbows are resistant to atmospheric corrosion and can be used for the circulation of corrosive liquids. We also offer a wide range of SS 304 pipe fittings such as SS WP304L tee, WP304H SS end cap, SS 304 reducer, etc. at the most competitive prices.
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Material | WP304 |
| Dimension | ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10 |
| Thickness of Fittings | SCH 10, SCH20, SCH 30, STD SCH 40, SCH 60, XS, SCH80, SCH100, SCH 120, SCH 140, SCH160, XXS available with NACE MR 01-75 |
| Types | Seamless | Welded | Fabricated |
| Bending Radius | R= 1D, 8D, 3D, 2D, 6D, 5D, 10D |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Size Ranges | Seamless ButtWeld Fitting: From 1/2″ - 10″ Welded ButtWeld Fitting: From 1/2″ - 48″ |
| Minimal Pipe Size |
O.D. | Reducer | ||
|---|---|---|---|---|
| Reduced from (inches) |
(millimeter) | (inch) | Reduced to (inch) |
Concentric & Eccentric Length (inch) |
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
| Grade | Mn | C | Si | P | S | Mo | Cr | Ni |
| Grade WP 304 | 2 max | 0.08 max | 0.75 max | 0.045 max | 0.030 max | - | 18 – 20 | 8 – 11 |
